As an integral part of our solution puzzle, we offer a switch system from Alcatel Lucent which provides a complementary technological solution to the solutions we offer.
Alcatel Lucent as one of the leading networking manufacturers in the world brings a wide range of complementary solutions starting from standard edge switches through network matrix switches to core switches.
Alcatel has a series of hardened industrial switches that meet all the standards required for an outdoor environment.

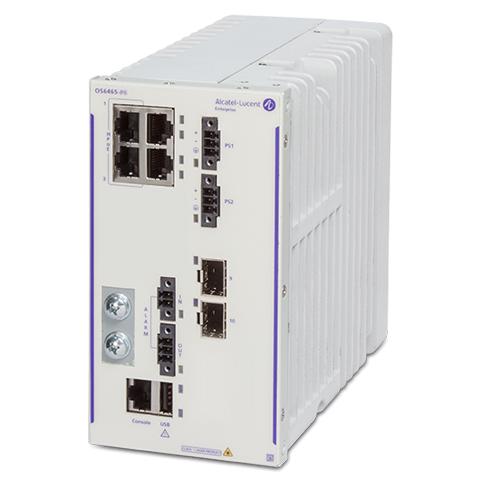

OmniSwitch 6465
Compact hardened ethernet switches
Overview: A family of ruggedized, fully manageable, and fan-less Gigabit Ethernet switches designed for the most demanding Industrial Ethernet applications. Built on the field-proven Alcatel-Lucent Operating System (AOS), these versatile switches offer flexible DIN rail and rack mounting options. They are ideally suited for mission-critical deployments in intelligent transportation, railways, smart cities, and utilities, providing end-to-end security and network reliability.
Key Features & Benefits:
Rugged Industrial Design: Operates in extended temperature ranges (-40°C to +75°C) and withstands high shock, vibrations, and surge (6KV).
High-Power PoE: Supports up to 60W PoE per port (IEEE 802.3bt), making it perfect for powering PTZ IP cameras, LED lights, and outdoor wireless APs.
Advanced Security: Features MACSec support on all ports for end-to-end encrypted networks and secure data integrity.
Precision Timing: Supports IEEE 1588v2 PTP for nanosecond-level synchronization required by industrial control devices.
Flexible Deployment: Compact, fan-less design with options for DIN rail, wall, or 19” rack mounting. Supports Virtual Chassis for high redundancy.
Available Models: OS6465-P6, OS6465-P12, OS6465-P28

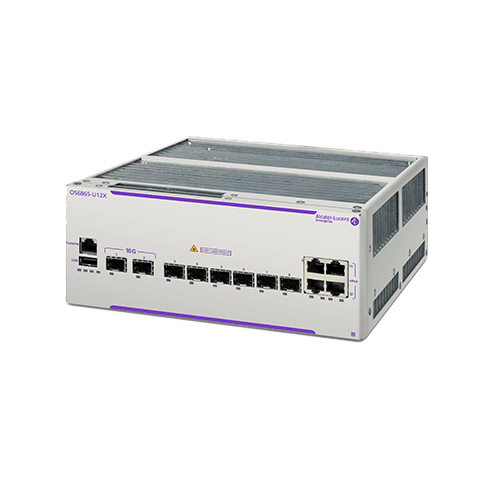

OmniSwitch 6865
Hardened Ethernet switches
Overview: A family of ruggedized, advanced Layer 3 scalable Ethernet switches designed to operate reliably in the harshest industrial environments. These switches are ideal for mission-critical applications such as traffic control systems, power utilities, and outdoor video surveillance requiring high bandwidth and security.
Key Features & Benefits:
- Rugged Industrial Design: Operates in wider temperature ranges (-40°C to +74°C) and features a fan-less design that withstands shock, vibrations, and high surge (6KV).
- High-Power PoE: Supports up to 75W PoE per port (IEEE 802.3bt) with Fast / Perpetual PoE, making it perfect for power-hungry devices like heavy-duty PTZ cameras and outdoor wireless APs.
- Advanced Layer 3 Routing: Offers SPB-M based VPNs and advanced routing capabilities for scalable network virtualization over standard Ethernet fabric.
- Precision Timing: Supports IEEE 1588v2 PTP for sub-microsecond time synchronization required for industrial IoT devices.
- High Performance: Features built-in 10 Gigabit SFP+ ports for high-speed uplink and supports Virtual Chassis technology for system redundancy and easy management.
Available Models: OS6865-P16X, OS6865-U12X, OS6865-U28X

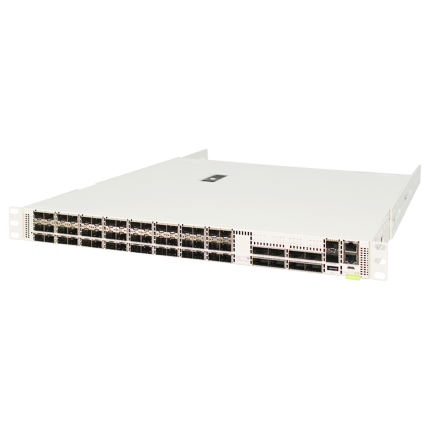

OmniSwitch 6900
Core and Data Centre LAN Switches
Overview: A compact, high-performance platform designed for the most demanding software-defined operations. These switches deliver extremely low latency and high density (10/25/40/100 GigE) for Top-of-Rack (ToR) Data Center and Campus Core networks.
Key Features & Benefits:
Extreme Performance: Wire-rate switching capacity of up to 6.4 Tb/s with ultra-low latency.
High Port Density: Up to 128 x 10G or 32 x 100G ports in a compact 1RU form factor.
Virtualization Ready: Built for SDN architectures, supporting VXLAN, SPB-M, and OpenStack integration.
- Automation: Zero-touch provisioning and full programmable RESTful API for autonomous network operations.
Resiliency: Hot-swappable power supplies and fans with Virtual Chassis support for maximum uptime.
- h-speed uplink and supports Virtual Chassis technology for system redundancy and easy management.
Available Models: OS6900-V48, OS6900-X48, OS6900-C32E, OS6900-T48
