Crisp Radars

Mal-Tech > Physical Security > Radars > Crisp Radars

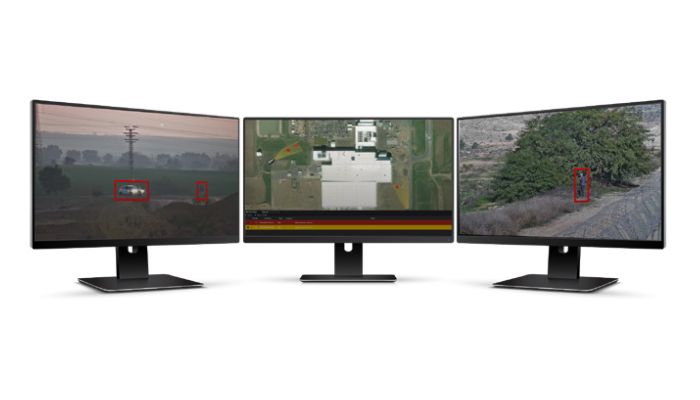

CRP – Crisp Radar Platform

Unified AI Surveillance & Radar Management

A comprehensive command and control solution that bridges the gap between radar detection and visual verification. The platform utilizes advanced "Slew-to-Cue" technology to automatically direct PTZ cameras toward radar-detected targets, ensuring immediate "eyes on object" for operators.

Key Capabilities:

  • Automated Slew-to-Cue: Instantly locks PTZ cameras onto radar targets for continuous auto-tracking and visual confirmation.

  • Dual AI Verification: Combines radar classification with video analytics to cross-reference targets (Human/Vehicle), dramatically reducing false alarms.

  • Smart Prioritization: Features an intelligent priority engine that ranks threats and filters out non-critical movements.

  • Full Situational Awareness: Includes an integrated GIS map for real-time tracking, multi-site management capabilities, and customizable non-detection zones.

Read MoreRead More

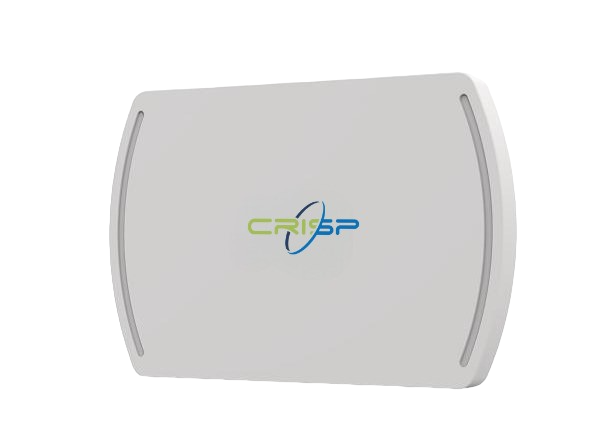

Crisp CR-400

AI Perimeter Security Radar Smart Intrusion Detection & Target Classification.

A smart 24GHz FMCW radar equipped with an advanced AI engine for precise perimeter protection. Designed to create a high-security virtual fence up to 300m, it utilizes intelligent algorithms to classify, identify, and prioritize targets based on speed, angle, and distance.

Key Benefits:

  • AI-Powered Analysis: Distinguishes between multiple targets simultaneously, prioritizing threats and minimizing false alarms even in complex scenarios.

  • Effective Range: Detects both pedestrians and vehicles up to 300m with a focused 20° azimuth beam for targeted perimeter coverage.

  • High Precision: Features FMCW technology with 0.5m accuracy and rapid 8Hz scanning frequency for real-time tracking.

  • Rugged & Simple: IP66/IK10 rated for harsh weather (-40°C to +75°C) with easy PoE (802.3af) installation and open integration.

Read MoreRead More

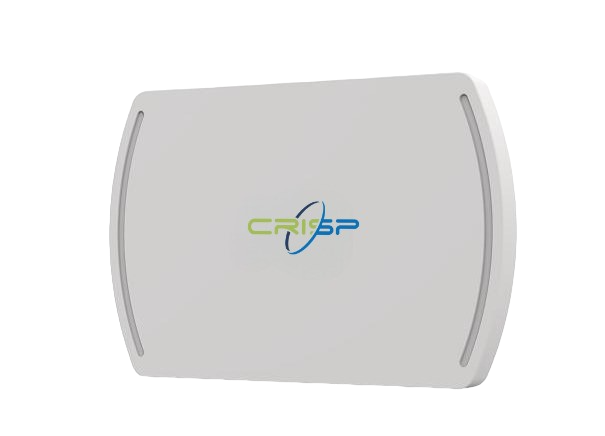

Crisp R-600

Wide Area Detection Radar 3D Perimeter Intrusion Detection System.

An advanced 24GHz FMCW radar solution designed for precise wide-area protection. It integrates digital transmitters to accurately calculate intruder angle and distance, ensuring reliable performance in severe weather conditions. Supports flexible array formations for 90°, 180°, 270°, and 360° coverage.

Key Benefits:

  • Long-Range Detection: Effectively detects pedestrians up to 450m and vehicles up to 600m.

  • High Precision: Tracks multiple targets simultaneously with a high range accuracy of 0.3m and rapid reaction time.

  • Rugged Reliability: Built for harsh environments (IP66, IK10) with an operating range of -40°C to +75°C.

  • Easy Integration: Simple PoE (802.3af) installation and open architecture for seamless connection to camera and control systems.

Read MoreRead More

Crisp CR-1000

Long Range Wide Area Radar Extended 3D Perimeter Detection & Protection.

The most powerful solution in the series, designed for long-range intrusion detection over vast areas. By integrating advanced digital transmitters and receivers, it provides precise 3D detection (angle, distance, and speed) to protect critical infrastructure perimeters.

Key Benefits:

  • Maximum Coverage: Combines long-range capabilities with a wide 100° azimuth coverage. Supports array formations (up to 360°) for complete site protection.

  • Superior Accuracy: High-performance FMCW technology ensures accurate tracking of multiple targets (pedestrians and vehicles) with minimal false alarms.

  • Heavy-Duty Design: A robust, reliable system (3.5kg, IP66/IK10) built to withstand severe weather conditions (-40°C to +75°C).

  • Smart Integration: Features auto-adjustment capabilities and open architecture for seamless integration with remote alarm and control systems.

Read MoreRead More
