Fixed Cameras and housing

Mal-Tech > Physical Security > Video > CCTV > pelco > Fixed Cameras and housing

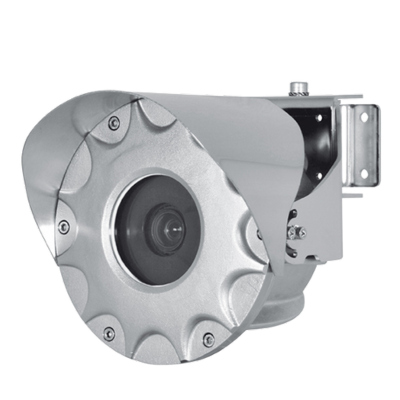

Pelco Maximus MMX

Compact Ex-Proof CameraLightweight & Compact Stainless Steel Solution

Designed for tight spaces where size matters, the MMX is a compact, lightweight explosion-proof camera (only 6.5kg). It provides Full HD surveillance without the bulk of traditional industrial cameras.

Key Benefits:

  • Compact Design: Weighing only 6.5kg and 116mm wide, it fits in narrow industrial or naval locations where other cameras cannot.

  • Zoom Options: Available with a 3x or 10x motorized zoom lens with digital image stabilization.

  • Rugged Build: Completely made of AISI 316L stainless steel with IP66/IP68/IP69 protection against water and dust.

  • Wide Temp Range: Certified operation from -40°C to +70°C, handling extreme heat and cold.

Read MoreRead More

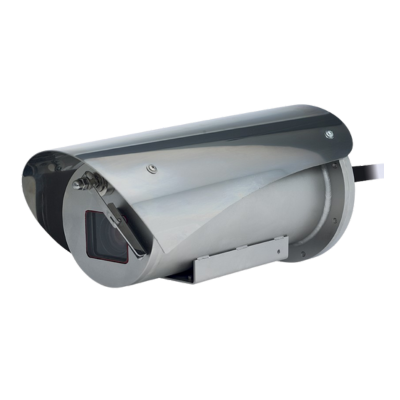

Pelco Maximus MVX Delux

Ex-Proof Fixed CameraHigh-Performance Fixed Monitoring with Wiper

A compact explosion-proof fixed camera that integrates the same powerful imaging technology as the PTZ version. It is perfect for monitoring specific processes or areas in explosive atmospheres with total reliability.



Key Benefits:

  • Super Low-Light: Equipped with Delux technology for recording bright, clear images day and night (0.006 lux).

  • Integrated Wiper: Comes standard with a built-in wiper to ensure clear visibility in dirty or rainy industrial conditions.

  • Extreme Durability: Rated IP66/IP68/IP69 and NEMA Type 4X/6P, allowing for high-pressure cleaning and submersion.

  • Marine Ready: Lloyd's Register Marine Type Approval ensures suitability for ships and offshore platforms.

Read MoreRead More

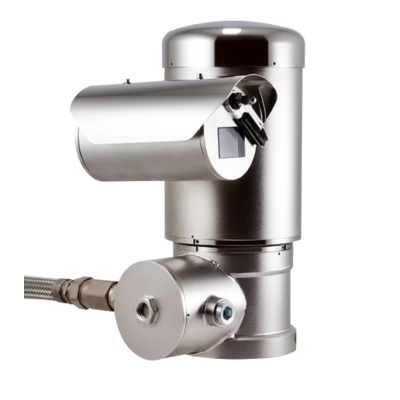

Pelco Maximus MPX Series 2

Ex-Proof PTZ with DeluxThe Ultimate Explosion-Proof PTZ for Critical Zones

A new generation of explosion-proof PTZ cameras designed for the most critical environments (Oil & Gas, Maritime). It combines extreme ruggedness with "Delux" technology for exceptional night vision in hazardous areas.

Key Benefits:

  • Certified Safety: Fully certified for Zone 1/2 (Gas) and 21/22 (Dust), complying with ATEX, IECEx, and UL/CSA standards.

  • Zero Corrosion: Constructed entirely from AISI 316L stainless steel to withstand corrosive atmospheres and salty environments.

  • Delux Vision: Captures vivid color images in low light (0.006 lux) with a 30x Optical Zoom (1080p/60fps).

  • Connectivity: Features an SFP slot for direct fiber optic connection and double cable entry for installation flexibility.

Read MoreRead More

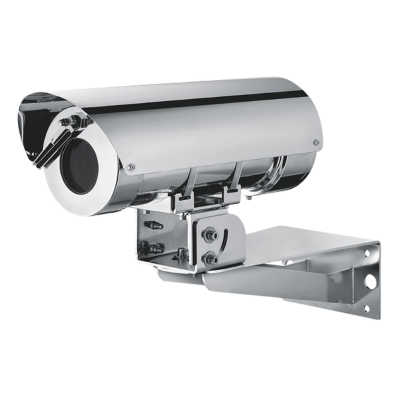

Pelco Maximus MHX

Ex-Proof HousingStainless Steel Housing for Custom Solutions

An explosion-proof housing designed to accommodate a variety of cameras and lenses in hazardous zones. It allows integrators to build a custom Ex-proof solution using their preferred internal components.

Key Benefits:

  • Flexible Integration: Supports a wide range of cameras/lenses (up to 80x82x245mm) for custom monitoring needs.

  • Smart Telemetry: The wiper version includes an integrated telemetry receiver (RS485) for remote control of the wiper and washer.

  • Certified Protection: ATEX, IECEx, and EAC Ex certified for Zone 1/2 and 21/22 usage.

  • Easy Maintenance: Features a slide-out internal rail and removable connectors for simplified wiring and service.

Read MoreRead More

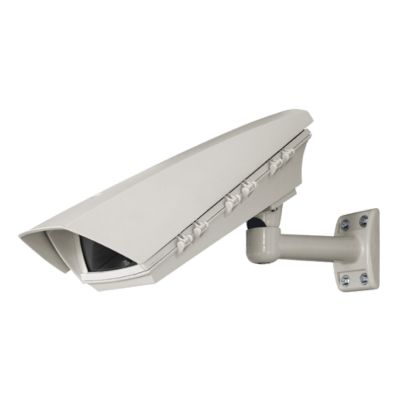

Pelco PUNTO – Side opening technology housing

Technopolymer Housing Stylish & Lightweight Protection

A chemically resistant technopolymer housing that offers a modern look and lightweight durability. It is designed to protect standard cameras from UV rays and atmospheric agents in non-hazardous environments.

Key Benefits:

  • Technopolymer Build: Made of high-resistance plastic that withstands UV rays and chemical agents.

  • Side Opening: Simplifies installation with full access to internal connections.

  • All-Weather: IP66/IP67 rated and includes a sunshield for outdoor protection.

  • Cable Management: Pre-arranged for internal cable management brackets to keep wiring clean and protected.

Read MoreRead More

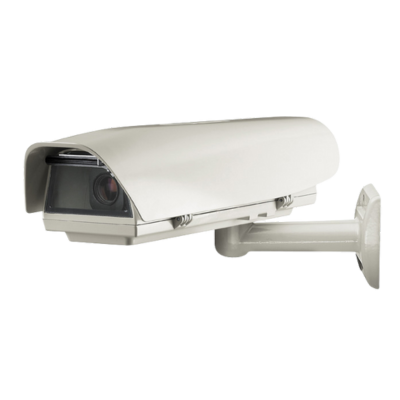

Pelco HOV

Aluminium Camera Housing Robust Side-Opening Housing for General Use

A sturdy aluminium housing designed for general-purpose outdoor surveillance. Its side-opening design makes installation and servicing effortless, allowing full access to the camera and lens.

Key Benefits:

  • Easy Access: Features a side-opening system for quick camera installation and maintenance.

  • Versatile Options: Available with an integrated wiper, heater, fan-assisted heater, and PoE power supply options.

  • Weatherproof: Rated IP66/IP67 to guarantee total protection against rain and dust.

  • Cooling System: A version with a double filter and blower is available for high-temperature environments.

Read MoreRead More
